Slimdrive EMD

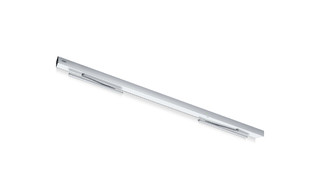

Slimdrive EMD-F/R-IS * Electromechanical swing door drive system for double leaf fire and smoke protection doors with closing sequence control and integrated smoke switch

Slimdrive EMD-F/R-IS
  • Closing force with variable adjustment of EN 4-6
  • Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
  • Opening and closing speed can be individually adjusted
  • Mechanical latching action when operated without current, and electrical latching action in regular operation, which accelerates the door shortly before the closed position
  • Mechanical and electrical closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
Show more
  • Obstacle detection detects an object through contact and stops the opening or closing process
  • Automatic reversing detects an obstacle and returns to the opening position
  • Push & Go function triggers the automatic drive following light manual pressure on the door leaf
  • Drive can be used with roller guide rail or link arm
  • Servo function for motorized support when manually opening the door
  • Freely configurable inputs and outputs for different functions
  • Can be networked, and integrated into the building automation via open standard (BACnet)
Contact us

Application Areas

  • Fire and smoke protection doors
  • Hold-open systems with integrated hold-open function – country-specific specifications must be observed
  • Right and left double leaf single-action doors
  • Single-action doors up to 2800 mm hinge clearance, 1400 mm leaf width and 230 kg weight
  • Interior and exterior doors with high access frequency
  • Transom installation hinge and opposite hinge side

Technical data

Slimdrive EMD-F/R-IS
Leaf weight (max.) 1-leaf 230 kg
Distance centre door hinge-drive axis (min.-max.) 2-leaf, link arm 1500 mm - 2800 mm
Distance centre door hinge-drive axis (min.-max.) 2-leaf, roller guide rail 1700 mm - 2500 mm
Leaf width (min.-max.) 850 mm - 1400 mm
Reveal depth (max.) 300 mm
Door overlap (max.) 50 mm
Drive type Electromechanical
Opening angle (max.) 130 °
DIN left Yes
DIN right Yes
Transom installation opposite hinge side with link arm Yes
Transom installation opposite hinge side with roller guide rail Yes
Transom installation hinge side with roller guide rail Yes
Mechanical latching action Yes
Electrical latching action Yes
Electrical closing sequence control Yes
Mechanical closing sequence control Yes
Disconnection from mains Main switch in the drive
Activation delay (max.) 20 s
Operating voltage 230 V
Power rating 230 W
Power supply for external consumers (24 V DC) 1000 mA
Service temperature -15 - 50 °C
Air humidity non-condensing (max.) 95 %
IP rating IP20
Mode of operation Automatic, Permanently open, Night, Off, Shop closing
Automatic function Yes
Low-energy function Yes
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable
Operation Programme switch integrated in the drive, Programme switch DPS, MPS programme switch
Parameter setting Service terminal ST 220, Programme switch DPS, GEZEconnects (PC + Bluetooth)
Standard conformity DIN 18263-4, DIN 18650, EN 1158, EN 16005
Approvals General building approval from DIBt as a hold-open system
Suitability for fire protection doors Yes
Smoke switch integrated Yes
