TS 5000 E-ISM/S

TS 5000 E-ISM/S SoftClose * Overhead door closer with guide rail system for double leaf doors with latching action/ brake-to-stop function with closing sequence control and electric hold-open device on the passive leaf

Door closer TS 5000 L-ISM 2-leaf overhead door closer system with integrated mechanical closing sequence control, standard installation on door leaf/opposite hinge side

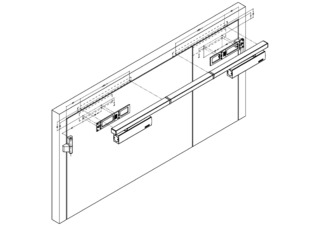

  • System with two door closers TS 5000 and an E-ISM/S guide rail with hold-open unit on the passive leaf
  • Closing force with variable adjustment from EN2-6
  • Can be used for right and left hand doors without conversion
  • The passive leaf is electrically held open in the guide rail, hold-open area 80°-130°.
  • Active leaf is held open by a hold-open magnet or door closer with free swing function
  • Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
Show more
  • Latching action / smooth latching function can be adjusted from the front via valve
  • Closing speed can be individually adjusted
  • Integrated back check, slows down doors that are thrown open forcefully
  • Visual closing force display for easy control of the setting
  • All functions can be adjusted from the front
Contact us

Overhead door closer with guide rail system for double leaf doors with latching action/ brake-to-stop function with closing sequence control and electric hold-open device on the passive leaf

Application Areas

  • Fire and smoke protection doors
  • Right and left double leaf single-action doors
  • Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width
  • Symmetrical and asymmetrical division of door possible
  • Door leaf installation hinge side
  • Hold-open systems with integrated hold-open device on passive leaf

Technical data

TS 5000 E-ISM/S SoftClose
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1400 mm
Leaf width (max.) 1400 mm
Type of installation Door leaf installation hinge side
Opening angle (max.) 180 °
Input voltage 24 V DC
Minimum hinge clearance 1300 mm
Minimum passive leaf width 400 mm
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Latching action speed, adjustable Yes
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Hold-open device Electrical
Hold-open device on the active leaf / passive leaf No / Yes
Hold-open range 80 ° - 130 °
Integrated closing sequence control Yes
