TSA 325 NT

TSA 325 NT RC2 * Automatic revolving door system with burglar resistance in accordance with resistance class 2

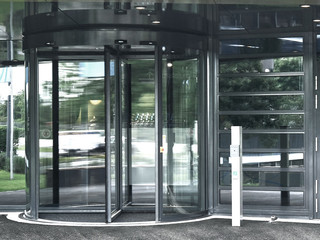

Product Image revolving door website TSA 325 NT RC2 TSA 325 NT RC2, ESO Supernova Garching, product image revolving door of the website
  • Certified burglar resistance according to resistance class RC2
  • The RC2 function is only enabled in night mode
  • Equipped with a rod locking and reinforced profile components
  • Very quiet running, low-wear direct current drive solution with a canopy height of at least 200 mm
  • Precise closing of the door leaves with the side walls
  • Effective insulation effect against draughts, weather and noise
Show more
  • Adjustable automatic speed setting, in line with the number of people passing through
  • Can be networked, and integrated into the building automation via open standard (BACnet)
  • Independent error recognition and recording
  • Freely configurable inputs and outputs for different functions
  • Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
Contact us

Application Areas

  • Three- and four-leaf door systems
  • Interior and exterior doors with maximum safety requirements
  • Representative building entrances with large incidence of light
  • Façades with slim mullion-transom constructions
  • Glass façades with the highest design standards
  • Inner diameter ranging from 2500 to 3400 mm possible
  • Suitable profile systems are fine-framed profile systems with ISO and mono glass

Technical data

TSA 325 NT RC2
Manual operation Yes
With speed limiter (optional) Yes
With positioning device (optional) Yes
Fully automatic operation Yes
Servo function Yes
Suitability for escape and rescue routes No
Break-out function (BO) No
Inner diameter (min.) 2500 mm
Inner diameter (max.) 3400 mm
For 3-leaf door systems Yes
For 4-leaf door systems Yes
Clear passage height 3000 mm
Canopy height (min.) 200 mm
Side elements version 10 mm LSG
Version of roof structure optical sheet metal covering, waterproof roof with waterspout
Illumination with roof variant
Floor covering Entrance mat, Entrance mat according to customer wishes
Hot-air curtain system Electric air curtain, hot water air curtain, possible, depends on the ceiling construction
Night-time closer layout Inside
Night-time closer type Automatic
Night-time closer design 10 mm LSG
Lock Manual, Rod, electromechanical
Door handles horizontal or vertical Yes
Floor ring Yes
Underfloor operator No

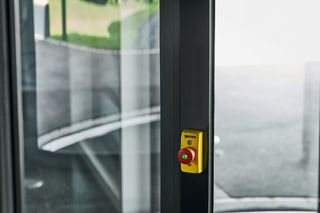

Disabled person's button Yes
Standard conformity DIN 18650, EN 16005
