GC Lock Control SHEV * Additional control unit for motor locks for 12 V or 24 V motor locks on an SHEV air inlet door
- Compatible with motor locks up to 4.5 A (24 V) and 1.25 A (12 V)
- Supports all GEZE components: SHEV control panel, supply air drive, swing door drive and door control unit
- Simple and safe wiring of components for various SEHV inlet vent solutions
- Clearly positioned inputs and outputs simplify installation
- Secure power supply to the motor locks via SHEV control panel and power supply
- Status display enables easy maintenance and installation
- Rectifier function for reversing the polarity or resetting the SHEV control panel
- Overvoltage protection at the SHEV input
- Reliable opening and closing, including in normal operation
- Can be integrated into building automation control systems or physical security information management systems via the SHEV control panel
- One control is required per air inlet door (single or double leaf) with motor lock
This additional control unit for SHEV air inlet doors enables simple and safe wiring of the components used on a single or double leaf SHEV air-inlet door. In the case of a SHEV alarm, the components are supplied with power by the controlled SHEV control panel and activated accordingly. The operation of a 12 V motor lock is made possible with an additional DC-to-DC converter.
Application Areas
- Single and double leaf SHEV air inlet doors
- SEHV inlet vent solutions in combination with a motor lock

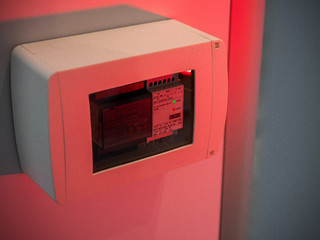

- Can be mounted in the GEZE surface-mounted housing or in the distribution box
- Top hat rail mounting
Installation situations in reference objects and videos

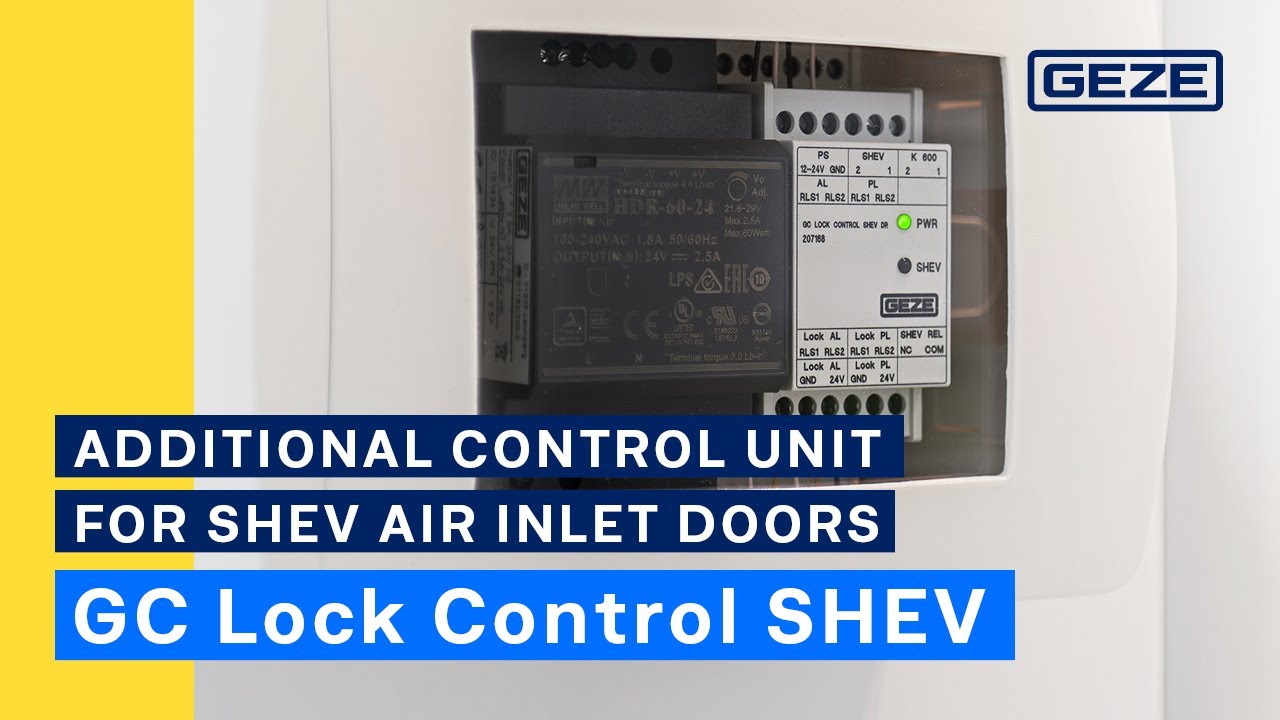

GC Lock Control SHEV product presentation
Sören Eilers talks about the additional control unit for SHEV air inlet doors.
GC Lock Control SHEV
Additional control unit for motor locks for 12 V or 24 V motor locks on an SHEV air inlet door. © GEZE GmbH
Technical data
| GC Lock Control SHEV | |
| Dimensions | 35 x 60 x 90 mm |
| Type of installation | Top hat rail mounting |
| Current consumption | 150 mA |
| Drives current (max.) | 4.5 A (24 V) |
| Motor locks current (max.) | 4.5 A (24 V), 1.25 A (12 V) |
| Cable dimensions (max.) | 2.5 mm² |
| Service temperature | -5 - 70 °C |
| IP rating | IP20 |
| protection rating | II |
