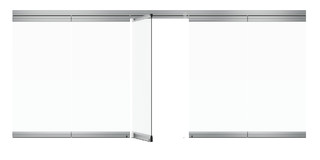

MSW Comfort * Movable all-glass partition wall system for shop partitions and flexible room design
- Individually configurable product system consisting of different element types
- Classic and Pureline design lines with continuous horizontal profile offer maximum transparency

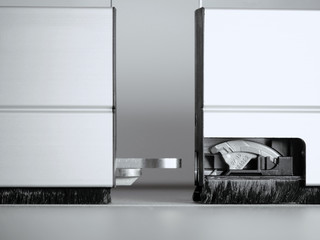

- Comfort locking mechanism integrated as standard
- SmartGuide technology integrated depending on selected stacking area
- Curve technology in the track system makes it easier to move the panels
- Optional with sliding swing door
Application Areas
- Movable glass partitioning walls
- Internal and protected external area
- Can be used up to 4000 mm clear height
- Can be used up to 1500 mm element width
- Can be used for linear and segmented axis profiles
Installation situations in reference objects and videos

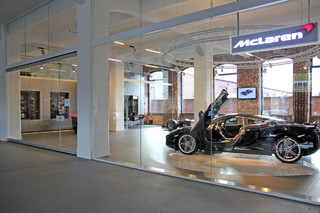

Manual sliding wall systems (MSW) by GEZE in the shopping mall at the BahnhofCity Vienna West.
MSW are key in creating an inviting and open atmosphere in shopping malls. Shops and outdoor spaces merge to allow barrier-free access. © Sigrid Rauchdobler / GEZE GmbH
MSW door systems by GEZE in the shopping mall at the BahnhofCity Vienna West
In Vienna's Westbahnhof, the design with a right and left stacking area allows a partial opening of the shop front. This means people can leave a shop when the MSW is closed, thanks to a double-action door with a floor spring which is positioned in the stacking area, and forms a secure lock for the moveable glass partition wall. © Sigrid Rauchdobler / GEZE GmbH
Installation video | MSW Comfort
In the following video, we show you the construction of a GEZE MSW system with the MSW Comfort mechanical-automatic sliding panel locking mechanism.
Technical data
| MSW Comfort | |
| Frameless | Yes |
| Indoor use | Yes |
| Outdoor use | Yes |
| Leaf height (max.) | 4000 mm |
| Leaf width (min.) | 700 mm |
| Leaf width (max.) | 1500 mm |
| Leaf weight with single carriage (max.) | 100 kg |
| Leaf weight with double carriage (max.) | 150 kg |
| Stacking area layout | Parallel, 90°, Special stacking area |
| Stacking area distribution | one-sided, double-sided |
| Track geometry | straight, polygonal, bent continuously |
| Optional floor guide | Yes |
| Top and bottom sealing brushes | Yes |
Downloads
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © Jürgen Biniasch / GEZE GmbH
LABELLING OBLIGATION: © Jürgen Biniasch / GEZE GmbH
LABELLING OBLIGATION: © Pau Esculies / GEZE GmbH
LABELLING OBLIGATION: © Pau Esculies / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
