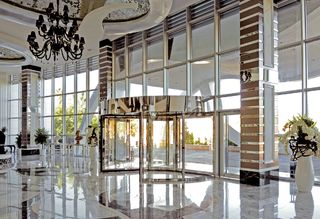

TSA 395 * Automatic revolving door system for three-leaf doors with large diameters
- Customised choice of diameter, passage height and surfaces
- Extensive equipment options
- Strong drive technology up to a diameter of 6000 mm
- Simple installation of the door system without lifting tools
- Fast commissioning thanks to pre-cabled and configured sensors
- Certification in accordance with EN 16005
Note: The product listed may not be available in your country. Please contact your GEZE contact person or send us an e-mail.
Application Areas
- Interior and exterior doors with high access frequency
- Representative building entrances with large incidence of light
- Façades with slim mullion-transom constructions
- Diameters from 3740 to 5940 mm possible
Technical data
TSA 395 | |
Fully automatic operation | Yes |
Suitability for escape and rescue routes | Yes |
Break-out function (BO) | Yes |
Inner diameter (min.) | 3740 mm |
Inner diameter (max.) | 5940 mm |
For 3-leaf door systems | Yes |
For 4-leaf door systems | No |
Clear passage height | 3200 mm |
Canopy height (min.) | 400 mm |
Side elements version | 8 mm LSG |
Version of roof structure | optical sheet metal covering, waterproof roof with waterspout |
Illumination | with roof variant, according to customer wishes |
Floor covering | Entrance mat, Entrance mat according to customer wishes |
Hot-air curtain system | hot water air curtain, Electric air curtain, possible, depends on the ceiling construction |
Night-time closer layout | Outside |
Night-time closer type | Manual |
Night-time closer design | 8 mm LSG |
Lock | Manual |
Floor ring | Yes |
Disabled person's button | Yes |
Standard conformity | EN 16005 |
