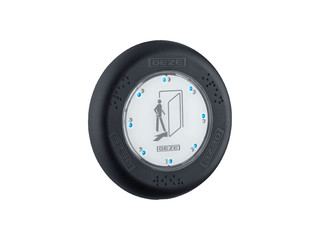

LED sensor switch * Switch for activating automatic doors
- IP rating IP69
- High-quality and hygienic activation with visual feedback of the activation command
- Capacitive push button with blue LED illumination
- Also available with Braille tactile lettering
- Available with glass or plastic border
Switch for activating automatic doors
Application Areas
- For activation of all GEZE automatic doors
- Flush-mounted installation
Installation situations in reference objects and videos
Slimdrive SL NT + GC 363 + LED sensor button
Installation situation Slimdrive SL NT + GC 363 + LED sensor button. © GEZE GmbH
Slimdrive SL NT + GC 363 + LED sensor button, East Office
Automatic linear sliding door system with low height and clear design line, very smooth-running low-wear drive. © GEZE GmbH
Technical data
| LED sensor switch | |
| Dimensions | 100 x 100 x 10 mm |
| Current consumption | 35 mA |
| Output | PNP transistor output |
| IP rating | IP69 |
| Type of installation | Surface-mounted installation, flush-mounted installation |
| Cable connection type | Cable prepared for connection to screw terminal |
| Connection cable length | 200 mm |
| Temperature range | -30°C...+80°C |
Downloads
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
