Sensor switch

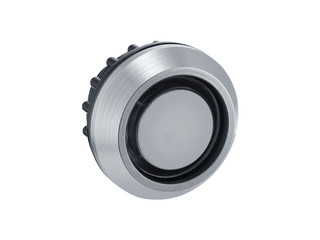

Mini LED sensor switch * Activation of all GEZE automatic doors

Mini LED sensor button Activation of all door drives for internal application and in the outer area
  • Very high IP rating of 69K
  • Long service life - more than 100 million hystereses
  • Shock-resistant and protected from vandalism by protection degree IP08
  • Requires drilling hole diameter of 22.2 mm
Contact us

Activation of all GEZE automatic doors

Application Areas

  • For activation of all GEZE automatic doors
  • High-quality and hygienic activation with visual feedback of the activation command

Technical data

Mini LED sensor switch
Dimensions 28.5 x 28.5 x 21 mm
Current consumption 20 mA
Output PNP transistor output
IP rating IP69K
Type of installation Flush-mounted installation
Cable connection type Cable prepared for connection to screw terminal
Connection cable length 200 mm
Temperature range -30°C...+70°C
