TS 5000 L SoftClose

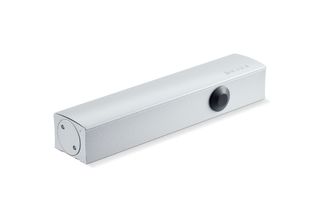

Closer body TS 5000 L SoftClose * For opposite hinge side EN 3-6 overhead door closer with guide rail with individually adjustable closing speed of 0-15° door opening angle

GEZE TS 5000 Closer body Overhead door closer with guide rails for single leaf fire and smoke protection doors
  • Closing force can be variably adjusted from the front
  • Visual closing force display ensures correct setting
  • Closing seed can be adjusted from the front via valve
  • Latching action / smooth latching function can be adjusted from the front via valve
  • Back check can be adjusted from the front via valve
  • Door closer, can be used for right and left hand doors
Show more
  • Minimal installation effort due to low number of individual parts and quick setting
Contact us

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1400 mm leaf width
  • Door leaf installation opposite hinge side and transom installation hinge side

Technical data

Closer body TS 5000 L SoftClose
Closing force in accordance with EN 1154 EN 3 - 6
Leaf width (max.) 1400 mm

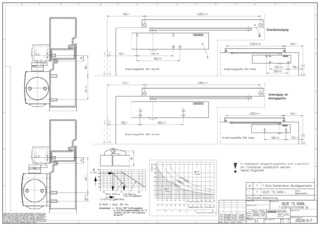

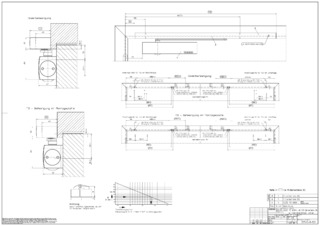

Type of installation Door leaf installation opposite hinge side, Transom installation hinge side
Opening angle (max.) 120 °
Identical design for DIN left and DIN right Yes
Standard conformity EN 1154:1996/A1:2002/AC:2006
Suitability for fire protection doors Yes
Length 287 mm
Width 47 mm
Height 60 mm
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Latching action speed, adjustable Yes
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Safety valve againts overload Yes
Thermo-control valves Yes
