Door draw-in damper

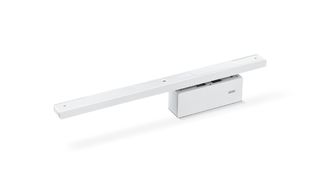

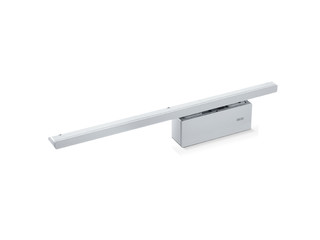

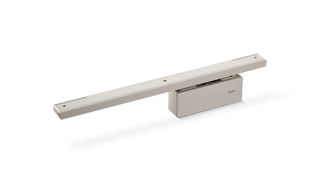

GEZE ActiveStop glass, surface-mounted Door damper on both sides for interior glass swing doors
- Door opening angle with variable adjustment from 80°-110°
- Can be used for right and left hand doors without conversion
- Soft opening and closing of doors up to max. 45 kg leaf weight
- Gentle stopping, quiet closing and comfortable keeping open of doors
- Practically eliminates slamming doors, trapped fingers, and damage to walls and furniture
- Secure holding of the door when open, meaning no door is stopper necessary
- Opening and latching speed when installed can be set via a valve
- Integrated safety valve offers overload protection
Door damper on both sides for interior glass swing doors
Application Areas
- Right and left glass single action doors with wooden frame indoors
- Room doors with high access convenience
- Single-action doors up to 1100 mm leaf width
- Barrier-free access in accordance with DIN 18040

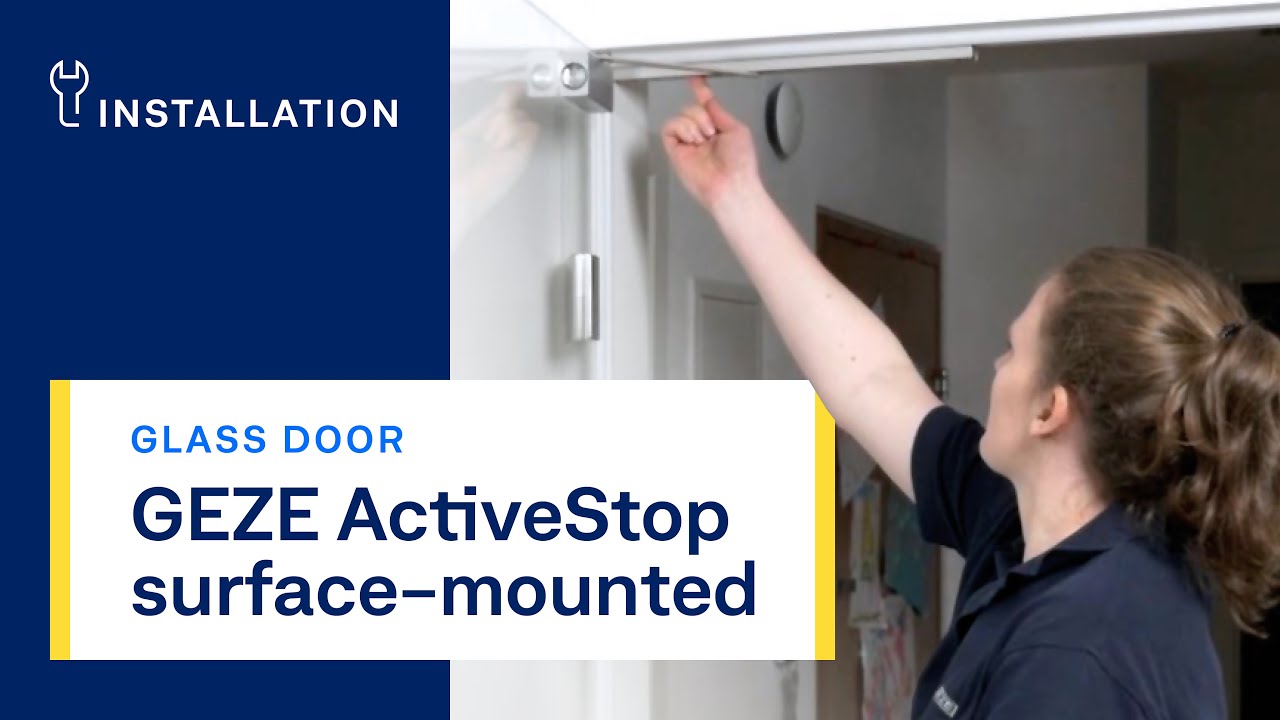

Installation situations in reference objects and videos
Safety note
For satinized glass surfaces use the GEZE ActiveStop "Fastening set for special glass".
Technical data
GEZE ActiveStop glass, surface-mounted | |
Depth | 34 mm |
Height | 68 mm |
Leaf weight (max.) | 45 kg |
Leaf width (max.) | 1100 mm |
Category of door | flush-mounted, rebated |
Identical design for DIN left and DIN right | Yes |
Installation type | surface-mounted |
Adjustable draw-in damper | Yes, via valve |
Draw-in damper in direction of closing movement from | 25 ° |
Free swing area | 25 ° - 60 ° |
Draw-in damper in direction of opening movement from | 60 ° |
Adjustable door opening angle | Yes, stepless |
Hold-open position adjustable | 80 ° - 110 ° |
Safety valve againts overload | Yes |
