OL 90 N

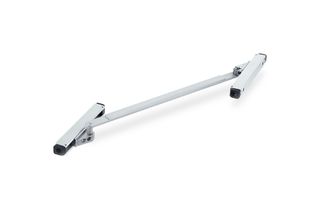

Mullion-frame transmission size 150 * Mullion-frame transmission size 150
- Achieves the full opening width of 170 mm for all leaf heights
- The opening width can be adjusted
- Post protrusion bridged by a swivel joint
- Can be installed on the secondary closing edge or main closing edge
- Completely pre-mounted assembly group facilitates installation
Application Areas
- Convenient daily ventilation of windows in mullion-transom façades
- Can be used in combination with OL 90 N scissors on inward opening bottom-hung and top-hung windows
- Automation by E 212 electric linear drive
- Installation on wooden, plastic or aluminium windows
- Frame installation
Technical data
| Mullion-frame transmission size 150 | |
| Leaf width (min.) | 550 mm |
| Leaf height (min.) | 250 mm |
| Leaf weight (max.) | 80 kg |
Downloads

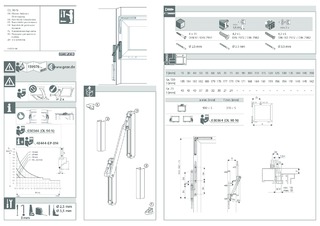

Post-frame transmission
