E 170 230 V * Scissor drive as design solution for optimum ventilation

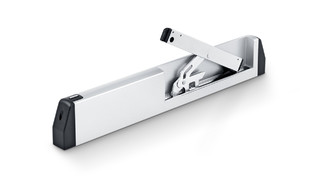

E 170 opening drive Scissor drive as design solution for optimum ventilation
  • Combines the OL 90 N fanlight opener and the E 212 electric linear drive in a single product
  • Scissors integrated in the cover profile
  • Attractive design and additional protection against contamination
  • Opening width is variably adjustable and can therefore be flexibly regulated on site
Contact us

Application Areas

  • Natural ventilation in the façade area
  • Inward-opening bottom-hung leaves
  • Installation on wooden, PVC or metal windows
  • Frame installation

Technical data

E 170 230 V
Dimensions 547 x 85 x 35 mm
i dimension (min.) 20 mm
i dimension (max.) 70 mm
Opening width (max.) 170 mm
Opening speed ventilation 4.9 mm/s
Compressive force 1500 N
Tensile force 1500 N
Panel weight (max.) 80 kg/m²
Frequency 50 Hz
Operating voltage 230 V AC
Current consumption 0.2 A
Power consumption 90 W
Duty rating 25 %
Min. core cross section 1.5 mm²
Number of cores 4 cores
Service temperature -20 - 60 °C
IP rating IP42
Type of stroke shortening Mechanical
End position cut-off extended Limit switches
End position cut-off retracted Limit switches
Overload cut-off Yes
Bottom-hung window INWARD-opening frame installation Yes
