ST 220 * Service terminal for the wireless and wired parameter setting of GEZE door and window products
- Four-line display and slim user interface for simple operation
- IR interface for the wireless parameter setting of emergency exit system door control units
- Wired parameter setting via RS 485 bus
- Voltage supply via cable in the case of wired operation
- 4x AAA batteries required for IR interface
Application Areas
- Emergency exit system door control units
- Motor locks
- Building automation components
- Automatic door drives
- Automatic window drives
Installation situations in reference objects and videos
GEZE Service Terminal ST 220
The service terminal can be used to set all parameters and functions for emergency exit systems and automatic door drives. © GEZE GmbH
Technical data
| ST 220 | |
| Width | 80 mm |
| Height | 125 mm |
| Depth | 37 mm |
| Service temperature | -15 - 50 °C |
| IP rating | IP40 |
| Operating voltage | 24 V DC |
| protection rating | III |
Downloads
Product shot
GEZE service terminal ST 220
LABELLING OBLIGATION:
© GEZE GmbH

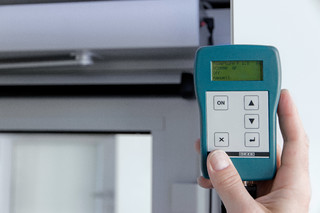

Installation situation
GEZE Service Terminal ST 220
LABELLING OBLIGATION:
© GEZE GmbH
Product data sheet
Declaration of conformity
Tender texts
Flyer/folder
Product brochure
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
